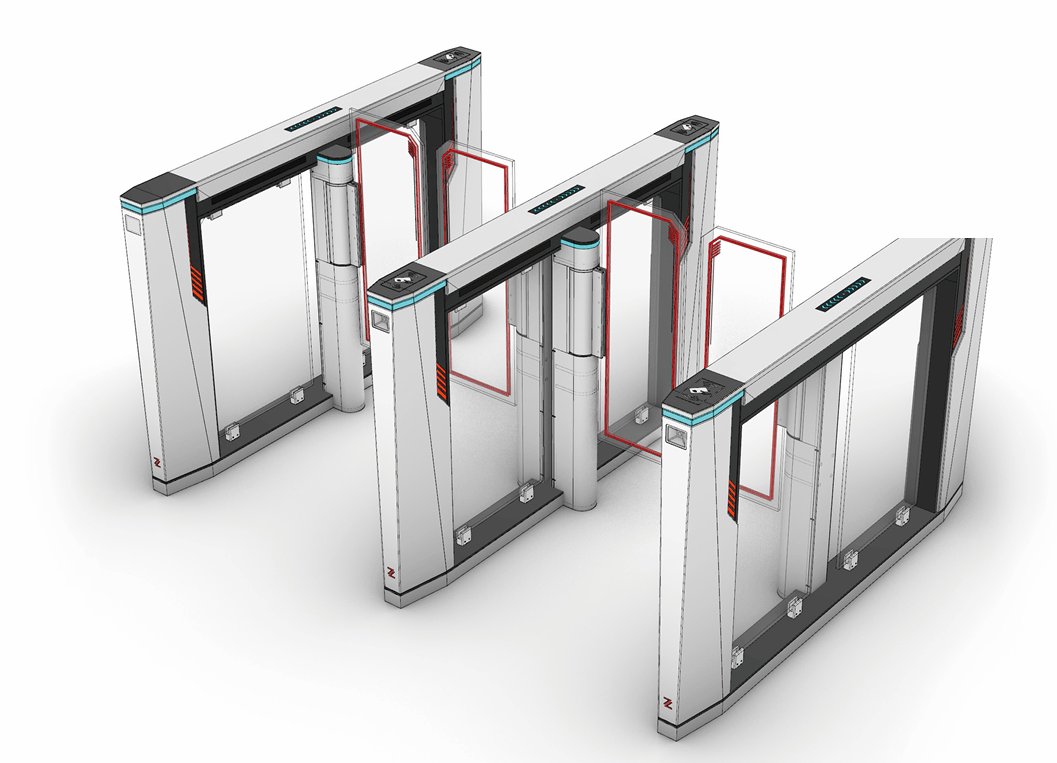

Speed Lane Turnstile ZT-923A

PARAMETERS

Materials: SUS 304 stainless steel

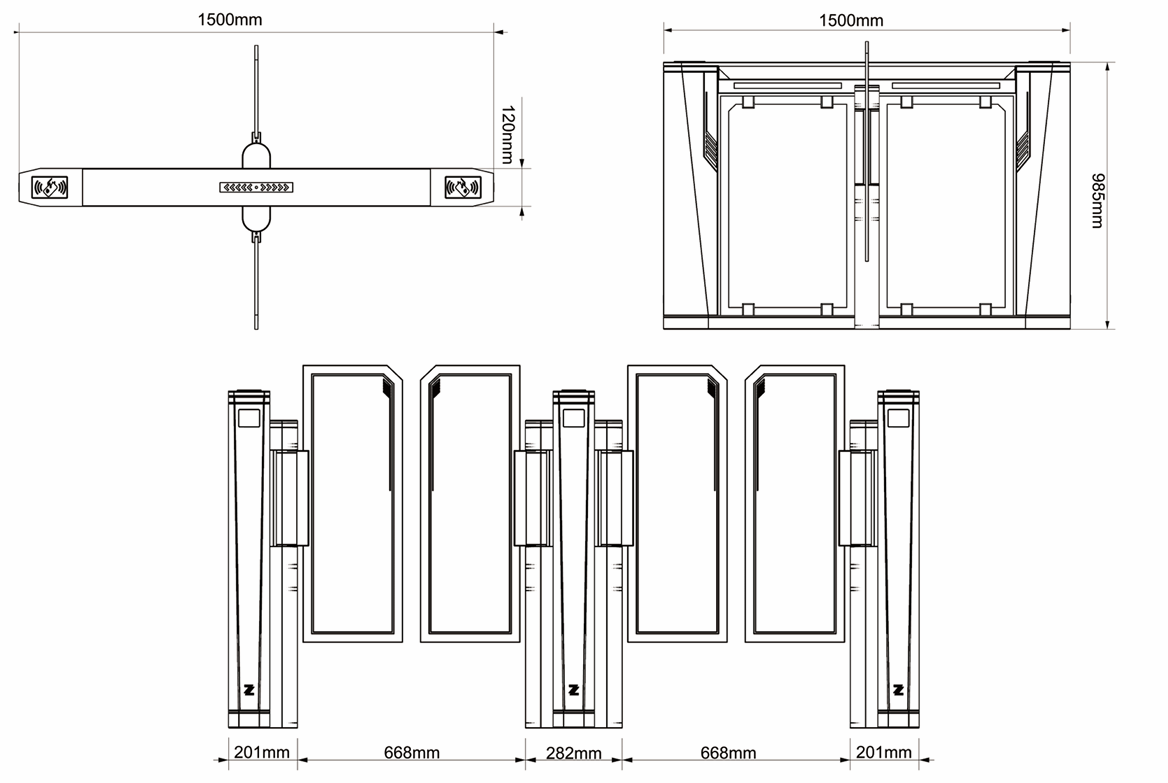

Size: 1511*201*985mm
Passage Width: 550-900mm
Motor Type: Servo Motor
Pass Speed: 75-80 person per minute
Barrier Material: Acrylic
Relative Humidity: ≤95%, No Condensation
Protection Level: IP65
Infrared Sensors: 6 pairs
MCBF: 8,000,000 Cycles
Input Power: AC220V±10V, 50/60HZ
Direction: Uni-direction/Bi-direction
Communication interface: RS485, TCP/IP
Warranty: 2 Years

Description

PARAMETERS

Materials: SUS 304 stainless steel
Size: 1511*201*985mm
Passage Width: 550-900mm
Motor Type: Servo Motor
Pass Speed: 75-80 person per minute
Barrier Material: Acrylic
Relative Humidity: ≤95%, No Condensation
Protection Level: IP65
Infrared Sensors: 6 pairs
MCBF: 8,000,000 Cycles
Input Power: AC220V±10V, 50/60HZ
Direction: Uni-direction/Bi-direction
Communication interface: RS485, TCP/IP
Warranty: 2 Years
